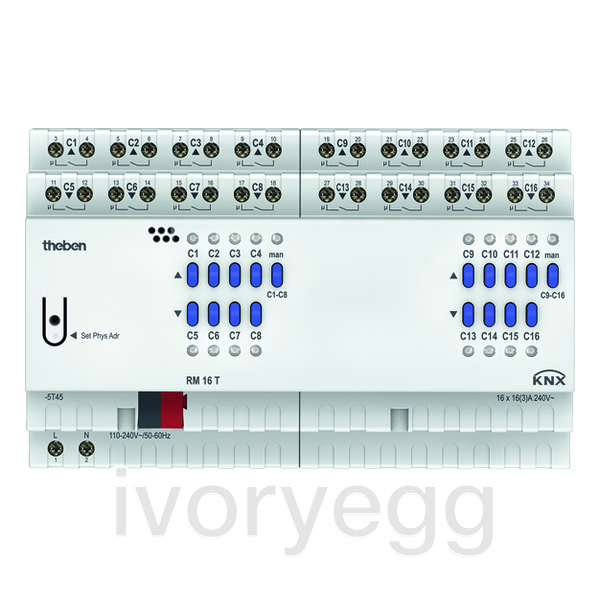

RM 16 T KNX - 16 way switching actuator FIX2
THEBEN 4940205

RM 16 T KNX - 16 way switching actuator FIX2

Product code: 4940205
16 Channel Relay or 8 Channel blind relay freely configuarable
Price (Excluding GST)
$P.O.A

Description

  • 16-way switching or 8-way blind actuator FIX2
  • Flexible channel function selection as switching actuator or for controlling drives for blinds,shutters, sun and vision protection devices, skylights and ventilation flaps
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)

Technical Details

Specification

  • Operating Voltage: 110 - 240 VAC
  • Power Consumption: 0.5W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 16
  • Output Rated Voltage: 240VAC
  • Type of Contact: NO contact, Potential Free
  • Current Rating: 16A (cos =1), 3A (cos=0.6)

Properties

Properties

Brand THEBEN
Technology KNX
Technology KNX
Mounting DIN Rail
Input voltage 230VAC
Outputs 16
IP rating IP20
Mounting Width 8MW
