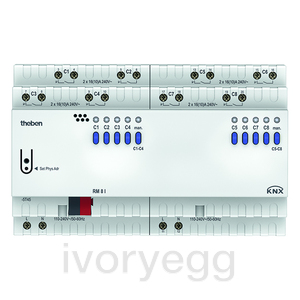

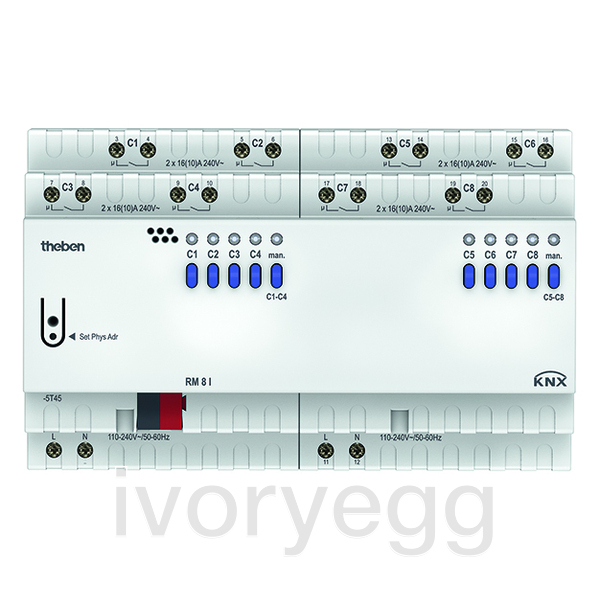

RM 8 I KNX 8-way C load switching actuator FIX2
THEBEN 4940215

RM 8 I KNX 8-way C load switching actuator FIX2

Product code: 4940215
8 x 16A C Load with Current recognition
Price (Excluding GST)
$P.O.A

Description

  • 8-way C load switching actuator FIX2
  • With current recognition
  • For higher lamp loads
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Adjustable characteristics: e.g. switching, delayed switching, pulse function
  • Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
  • Logical links: e.g. lock, AND, release, OR

Technical Details

Specification

  • Operating Voltage: 110 - 240 VAC
  • Power Consumption: 2.4W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 8
  • Output Rated Voltage: 240VAC
  • Type of Contact: NO contact, Potential Free
  • Current Rating: 16A (cos =1), 10A (cos=0.6)

Properties

Properties

Brand THEBEN
Technology KNX
Technology KNX
Mounting DIN Rail
Input voltage 230VAC
Outputs 8
IP rating IP20
Mounting Width 8MW
