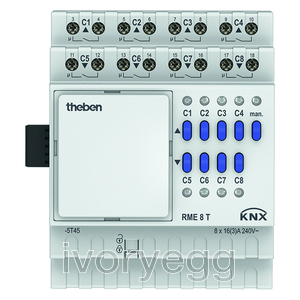

RME 8 T KNX 8-way switching or 4-way blind actuator Extension Module MIX2
THEBEN 4930205

RME 8 T KNX 8-way switching or 4-way blind actuator Extension Module MIX2

Product code: 4930205
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Price (Excluding GST)
$P.O.A

Description

  • 8-way switching or 4-way blind actuator MIX2
  • Extension module MIX2
  • For upgrading to maximum of 24 channels
  • Flexible channel function selection as switching actuator or for controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other, Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of actuator is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)

Technical Details

Specification

Operating Voltage: Via Base Module

Outputs: 8

Output Rated Voltage: 240VAC

Type of Contact: NO contact, Potential Free

Current Rating: 16A (cos =1), 3A (cos=0.6)

Properties

Properties

Brand THEBEN
Technology KNX
Mounting DIN Rail
Input voltage KNX Bus (29VDC)
Outputs 8
IP rating IP20
Mounting Width 4MW
