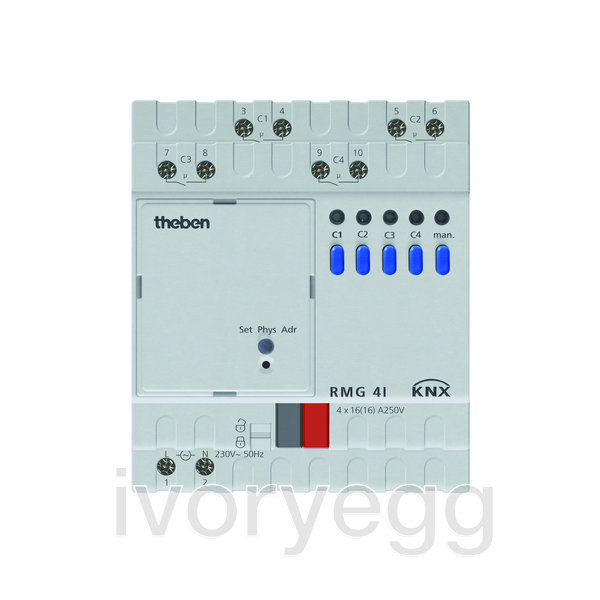

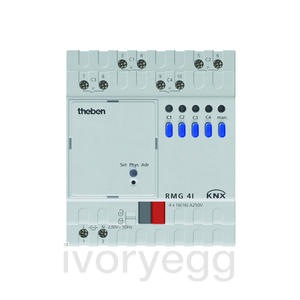

RMG 4 I KNX 4-way C load switching actuator MIX2
THEBEN 4930210

RMG 4 I KNX 4-way C load switching actuator MIX2

Product code: 4930210
The MIX2 series is a range of devices consisting of basic modules and extension modules. Up to 2 MIX or MIX2 extension modules can be connected to a basic module of this series. A wide range of functions can be controlled including Dimming, Switching, Heating, Binary Inputs and Blind Actuators.
Price (Excluding GST)
$P.O.A

Description

  • 4-way C load switching actuator MIX2, For higher lamp loads
  • With current recognition
  • Base module MIX2
  • Can be upgraded to maximum of 12 channels
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other, Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of switching actuators is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Adjustable characteristics: e.g. switching, delayed switching, pulse function
  • Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
  • Logical links: e.g. lock, AND, release, OR

Technical Details

Specification

  • Operating Voltage: 110 - 240 VAC
  • Power Consumption: 1.3W
  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 4mA
  • Outputs: 4
  • Output Rated Voltage: 240VAC
  • Type of Contact: NO contact, Potential Free
  • Current Rating: 16A (cos =1), 10A (cos=0.6)

Properties

Properties

Brand THEBEN
Technology KNX
Mounting DIN Rail
Input voltage KNX Bus (29VDC)
Outputs 4
IP rating IP20
Mounting Width 4MW
EAN 400346 8493083
