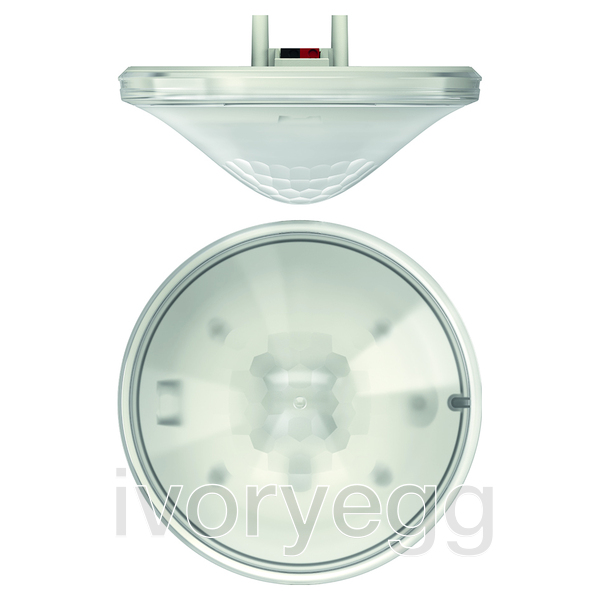

thePrema P360 KNX UP WH Passive infra-red presence detector
THEBEN 2079000

thePrema P360 KNX UP WH Passive infra-red presence detector

Product code: 2079000
KNX Passive infrared presence detector for ceiling mounting, Square detection range of 360° (up to 100 m2) for safe and easy planning
Price (Excluding GST)
$P.O.A

Description

  • 3 channel light and 2 channel presence
  • 2 channel light C1, C2 with 2 light measurements and additional lighting channel C3 without brightness factor
  • 2 presence channels can be set individually
  • Adaptable 3 channel light measurement
  • Mixed light measurement suitable for LEDs, fluorescent lamps (FL/PL/ESL) and halogen/incandescent lamps
  • Can be used as fully or semi-automatic, switchable
  • Switch or constant light control mode with stand-by function
  • Dimmable lighting in switch mode with stand-by function
  • Brightness switching value or set point value can be set in lux using parameters, on the device itself or via remote control
  • Teaching in of the brightness switching value or the set point value
  • Room correction factor setting for brightness measurement calibration
  • Light time delay can be set using parameters, on the device itself or via remote control
  • Switch on delay and time delay for presence can be set
  • Detection sensitivity can be set
  • Self-learning time delay
  • Reduced time delay in the event of a shorter stay in the room (short presence)
  • Scenario functions
  • Extremely easy setting of energy saving characteristics with the new "eco plus" function
  • Test mode for checking function and detection range
  • Parallel switching of several detectors in Master/Slave or Master/Master possible
  • User remote control and management-remote control (optional)
  • Room monitoring

Technical Details

Specification

  • Bus Voltage: KNX Bus 21...30VDC
  • Bus Current Consumption: 9mA
  • Recommended Installation Height: 2-3.5m
  • Minimum Height: 1.7m
  • Setting Brightness Range: 5 - 3000 LUX
  • Detection Angle: 360°
  • Detection Range at 2.5m Mounting height: 36m2 (Sitting) 64m2 (Walking)

Properties

Properties

Brand THEBEN
Technology KNX
Technology KNX
Frame finish White
Mounting Flush
Back Box Round European
Input voltage KNX Bus (29VDC)
Status LED's White
Buscoupler Included
IP rating IP40
