Zennio ShutterBOX Drive: Flexible Blind & Shutter Control

Zennio expands its ShutterBOX range with new 4, 6, and 8 channel actuators — delivering precise blind control, advanced automation, and seamless integration for any KNX project.

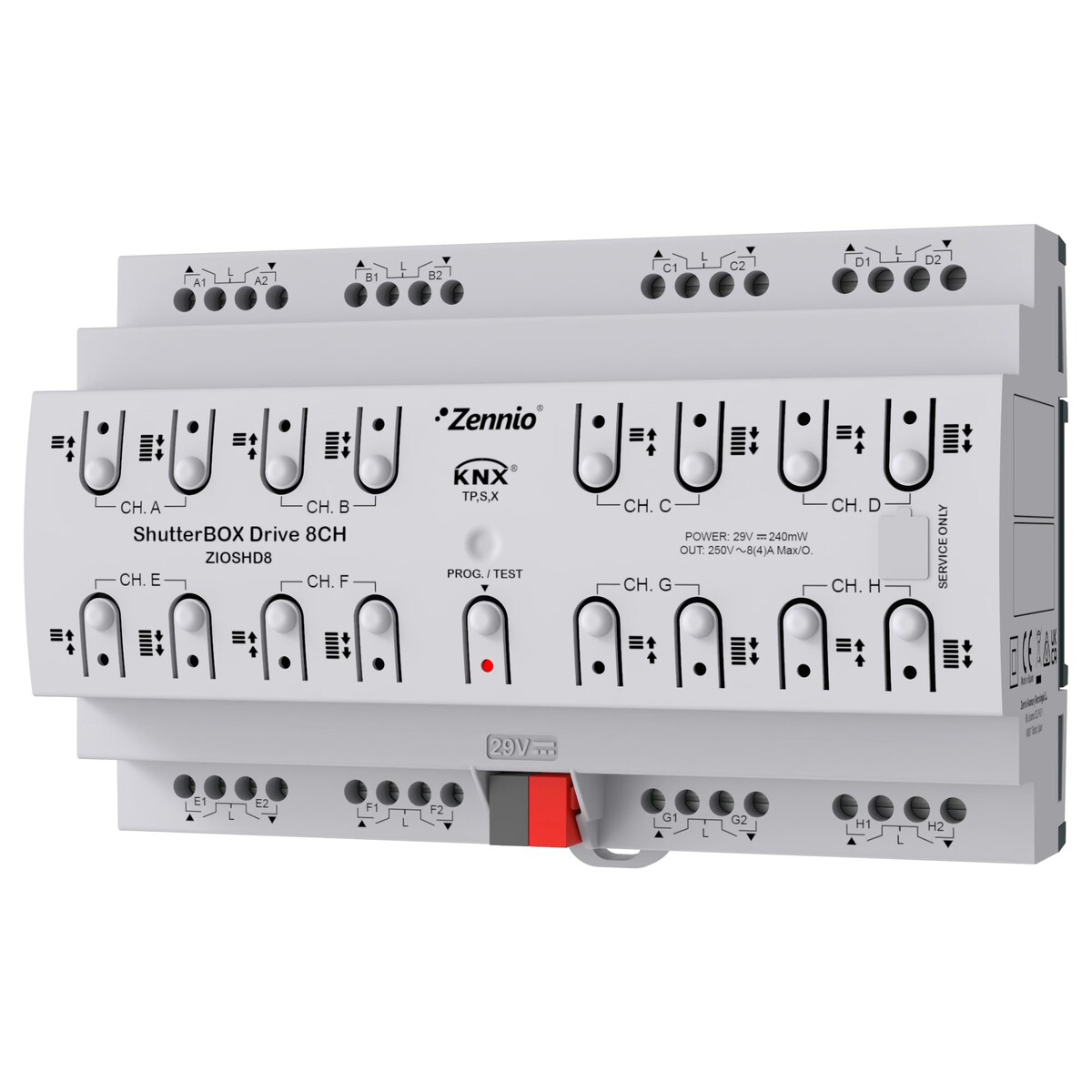

What is the ShutterBOX Drive?

The ShutterBOX Drive range is designed to make blind and shutter control smarter, simpler, and more reliable. Available in 2, 4, 6, and 8-channel versions, these actuators adapt to projects of any scale — from single residences to large commercial installations.

By automatically measuring shutter travel times with each operation, ShutterBOX ensures precise movement and perfect alignment of blinds every time. An intelligent sun-tracking function can even adjust slats throughout the day according to the sun’s position, improving comfort and energy efficiency.

Key Features

ShutterBOX Drive offers powerful features for both installers and end-users:

• Up to 2/4/6/8 shutter channels for flexible project needs
• Automatic travel time measurement via current detection (AC-powered shutters)
• 2- or 3-dry contact control depending on model
• Manual operation with pushbutton and LED status indication
• KNX Data Secure support for safe communication
• 20 logic functions for advanced automation scenarios
• Data retention during KNX bus failure for uninterrupted performance
• DIN rail mounting (IEC 60715 TH35) with fixing clamp
• Phase mixing supported across adjacent outputs
• Certified to CE and RCM directives

Smarter Automation

Thanks to its built-in 20 logic functions, ShutterBOX Drive goes beyond simple up/down commands. Automations can be configured to react to light levels, time schedules, or combined with other KNX devices for complete building control.

The integrated automatic sun position feature ensures blinds and shutters adjust in real time — optimising shading, protecting interiors, and boosting energy efficiency without manual input.

Technical Specifications

Quick overview of the ShutterBOX Drive range:

• Channels: 2, 4, 6, or 8
• Compatibility: KNX TP1-256, KNX Data Secure
• Logic Functions: 20 per device
• Mounting: DIN rail (IEC 60715 TH35)
• Operation: Pushbutton with LED feedback
• Connections: Supports different phases on adjacent outputs

Why Choose ShutterBOX Drive?

The ShutterBOX Drive actuators are ideal for KNX integrators, installers, and homeowners looking for:

• Scalability: Multiple channel options to match any project
• Precision: Automatic time measurement for perfect alignment
• Reliability: Continuous data storage, even during bus failures
• Security: Full KNX Data Secure support
• Efficiency: Intelligent automation for shading and energy savings
